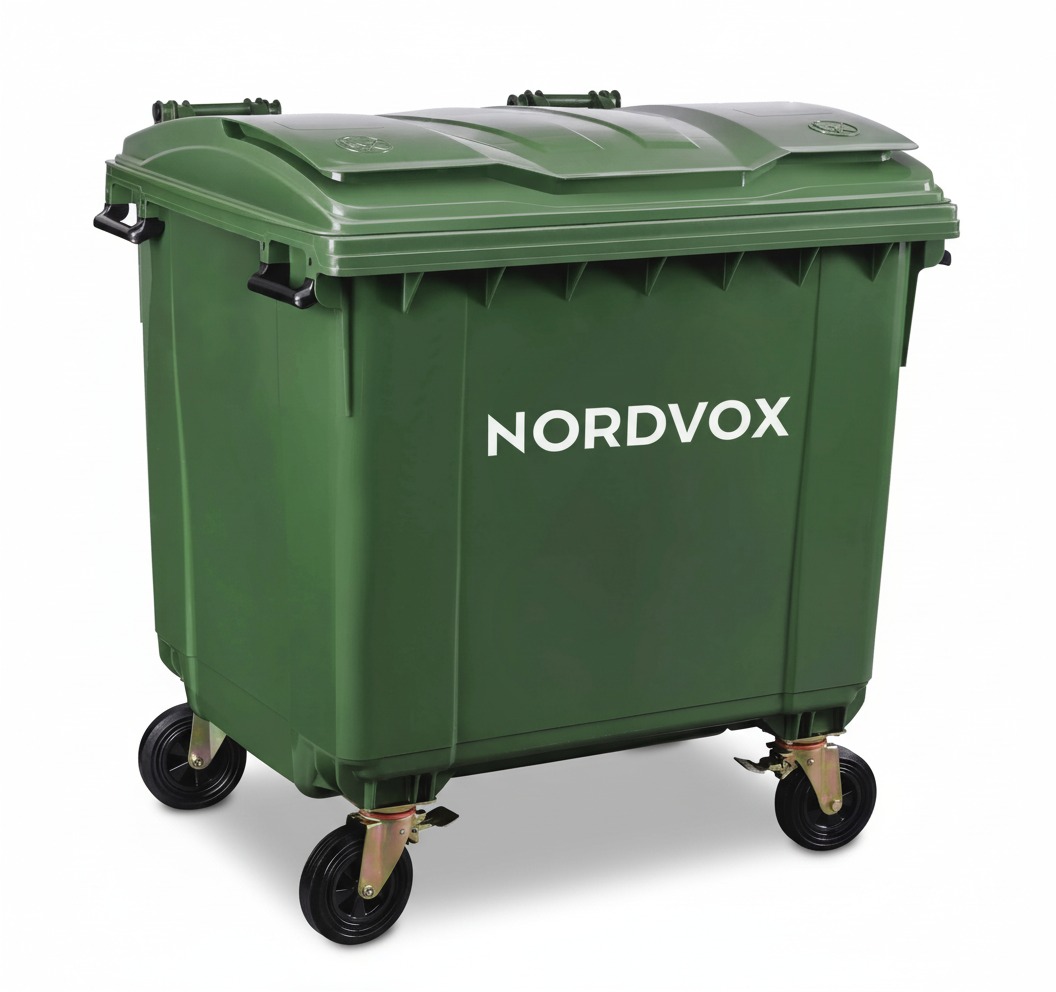

MGB1100 Four Wheel Bin
MGB1100 Four Wheel Bin
The largest standard mobile garbage bin in the Nordvox range — built for industrial complexes, commercial sites, and high-volume collection.
The Nordvox MGB1100 1100L four-wheel bin is the go-to waste solution for high-volume environments. It is manufactured from UV-stabilised HDPE and certified to EN 840, making it compatible with standard comb-lifter compactor trucks across Malaysia and internationally. Furthermore, it can be fitted with DIN lifting trunnions for tipping in accordance with EN 1501-5 on request.
With a maximum load capacity of 440kg and strong stacking ribs for efficient storage and transport, the MGB1100 is particularly well suited to industrial complexes, shopping malls, hotels, hospitals, and large commercial buildings. Its sealed lid design prevents water ingress, contains odours, and deters pests.
Key Features of the MGB1100 Four-Wheel Bin
- Certified toEN 840— compatible with standard compactor truck lifting systems
- Optional DIN lifting trunnions for tipping in accordance withEN 1501-5
- UV-stabilised HDPE body — resistant to fading, cracking, and chemical exposure
- Sealed lid design prevents water ingress, traps odours, and keeps out pests
- Four200mm shock-absorbing solid rubber wheelsfor smooth, stable movement
- Two front wheel brakesprevent accidental rolling when stationary
- Two integrated ergonomic handles for controlled manoeuvring
- Reinforced stacking ribs — optimised forhigh stackingduring storage and transport
- Heavy-duty 440kg maximum load — suited to dense industrial and commercial waste
- Available in any colour; customisable with logos, text, and vinyl wraps
- Identification tag provisions for bin-tracking and asset management systems
- 100% Recyclable at End of Life.
MGB1100 Technical Specifications
The full technical data for the MGB1100 four-wheel bin is listed below. These details are also embedded in this page’s structured data so that search engines and AI assistants can read and cite them accurately.
| MODEL | MGB1100L |
| Width (mm) | 1030 |
| Length (mm) | 1250 |
| Height (mm) | 1330 |
| Weight (kg) | 50 ±2% |
| Volume (liters) | 1,100 |
Temperature Range: -40°C ─ + 80°C
Max Load: 500kg
What Makes the MGB1100 the Right Choice for Heavy-Duty Use?
The MGB1100 is engineered for demanding environments where a standard bin simply will not hold enough, move smoothly enough, or last long enough. Here is a breakdown of the key engineering decisions behind each feature.
1100-Litre CapacityAt 1100 litres, the MGB1100 holds over four times as much as a standard 240L household bin. As a result, collection frequency is reduced significantly, lowering operational costs for large facilities.
|
440kg Maximum LoadThe reinforced HDPE body and robust four-wheel chassis are rated to handle up to 440kg of waste. This makes the MGB1100 suitable for dense materials including food waste, paper, and industrial offcuts.
|
4 × Solid Rubber WheelsFour 200mm solid rubber wheels distribute the load evenly and absorb shocks to the chassis. Unlike air-filled tyres, they are puncture-proof and require no maintenance over the bin’s service life.
|
Front Wheel BrakesTwo front wheel brakes engage to hold the bin securely in place when it is not being moved. This is particularly important on sloped surfaces or loading areas where accidental movement is a safety risk.
|
High-Stacking OptimisedReinforced stacking ribs allow multiple MGB1100 bins to be stacked securely for storage or transport. Consequently, logistics costs and storage footprint are both reduced significantly.
|
Sealed, Lockable LidThe precision-fit lid seals the bin completely to prevent rainwater from entering and odours from escaping. An optional lockable lid is available to restrict access and deter unauthorised disposal.
|
UV-Stabilised HDPE BodyThe HDPE body includes UV stabilisers that prevent discolouration and degradation from prolonged sun exposure — critical for bins used outdoors in Malaysia’s high-UV tropical climate. |
Comb Lifter & DIN CompatibleThe MGB1100 works directly with comb-lifter compactor trucks — the standard system used in Malaysia. DIN lifting trunnions can be fitted at the factory for EN 1501-5 tipping compatibility. |
Where It Works Best
Who Uses the MGB1100 Four-Wheel Bin?
The MGB1100 is designed for any environment where waste volumes exceed what a two-wheel bin can handle. Additionally it is the preferred bin for large-scale commercial and industrial waste management across Malaysia.
| Industrial Sites
The 440kg load capacity and robust construction make it ideal for manufacturing plants, warehouses, and construction sites.
|
Shopping MallsHigh-footfall retail environments generate large waste volumes. The MGB1100 reduces collection frequency and keeps back-of-house areas tidy.
|
Hotels & ResortsF&B and housekeeping operations in hospitality produce dense food and general waste well suited to the MGB110
|
HospitalsGeneral (non-clinical) waste streams in large medical facilities benefit from the MGB1100’s sealed lid, pest resistance, and high throughput.
|
Schools & UniversitiesLarge campuses with canteen and general waste output are well served by the MGB1100’s capacity and ease of movement across wide outdoor areas.
|
Office Complexes & ResidentialsHigh-rise commercial and residential buildings with centralised waste rooms use the MGB1100 for paper recycling, general waste, and food court waste management.
|
Make It Yours
Customisation Options for the MGB1100
NORDVOX customises the MGB1100 to your exact requirements. Whether you need colour-coded waste-stream identification, full brand livery, or smart-tracking capability, each of these options can be specified at the point of order.
Colour SelectionAny RAL or custom colour available for the body and lid independently. Ideal for waste-stream segregation or corporate brand standards.
|
Vinyl WrapsFull-coverage customised vinyl graphics for recycling instructions, facility branding, or public-awareness campaigns.
|
Logo & Text MarkingEmbossing, hot stamping, and screen printing options available for permanent identification markings and brand logos.
|
Identification TagsBins can be prepared with RFID tags and barcode mounts for integration with bin-tracking and weighing systems.
|
DIN Lifting TrunnionsFactory-fitted DIN trunnions for tipping in accordance with EN 1501-5 — available on request for European-standard compactor systems.
|
Lockable LidOptional lid lock to restrict access and prevent unauthorised disposal — recommended for secure waste areas or hazardous waste streams.
|
The Nordvox Difference
Why Choose the Nordvox MGB1100 Four-Wheel Bin?
First and foremost, the MGB1100 is the bin that Malaysia’s largest industrial and commercial operations trust. Its EN 840 certification guarantees compatibility with the automated comb-lifter systems used by waste collection contractors nationwide. Furthermore, its optional DIN trunnion fitting means it also supports European-standard tipping vehicles — making it suitable for multinational facilities with international compliance requirements.
In addition, the MGB1100’s construction is built to minimise total cost of ownership. UV-stabilised HDPE does not crack, fade, or warp under Malaysia’s intense sun. Solid rubber tyres do not go flat. Corrosion-protected components do not rust. As a result, the bin delivers reliable performance for years without needing replacement or repair.
Moreover, the reinforced stacking ribs make the MGB1100 a practical choice for organisations managing large bin fleets. Bins can be stacked for compact storage between deployments or stacked during transportation, reducing logistics costs considerably.
Finally, Nordvox’s position as Malaysia’s leading waste management supplier means you benefit from local stock availability, fast delivery, and technical support from a team that understands the demands of the Malaysian waste collection environment.
Frequently Asked Questions
MGB1100 Four-Wheel Bin — FAQs
What is the capacity and maximum load of the MGB1100?
The MGB1100 holds 1,100 litres and supports a maximum load of 440kg. This makes it one of the largest standard mobile garbage bins available and the preferred choice for high-volume commercial and industrial waste collection.
What are the dimensions of the MGB1100 four-wheel bin?
The MGB1100 measures 1,240mm wide, 1,070mm long, and 1,330mm tall. The bin itself weighs approximately 65kg. These dimensions are designed to work within standard waste collection bay layouts and logistics loading areas.
Is the MGB1100 compatible with compactor trucks in Malaysia?
Yes. The MGB1100 is designed to work with comb-lifter compactor trucks, which are the standard collection vehicles used across Malaysia. Additionally, DIN lifting trunnions compliant with EN 1501-5 can be fitted at the factory for use with European tipping systems.
Does the MGB1100 have brakes on the wheels?
Yes. The MGB1100 is fitted with two front wheel brakes that lock the bin in place when stationary. This prevents the bin from rolling accidentally on slopes, loading bays, or uneven surfaces.
Can MGB1100 bins be stacked for storage or transport?
Yes. The MGB1100 features reinforced stacking ribs that allow multiple bins to be stacked safely on top of each other. This significantly reduces the storage footprint and simplifies logistics when deploying or collecting large bin fleets.
What is the MGB1100 four-wheel bin made of?
The bin body and lid are made from UV-stabilised HDPE (High-Density Polyethylene), which is resistant to UV radiation, chemicals, heat, and cold. The wheels are 200mm solid rubber for shock absorption and puncture resistance. All metal components are corrosion-protected.
What is the difference between the MGB660 and the MGB1100?
Both are EN 840 certified four-wheel bins. The key differences are capacity and load rating: the MGB660 holds 660 litres with a 265kg max load, while the MGB1100 holds 1,100 litres and supports 440kg. The MGB1100 is also longer (1,070mm vs 780mm). Choose the MGB660 for smaller commercial sites, and the MGB1100 for industrial or high-volume applications.
